KPN fibre optic connection with TP-link Deco, is this pppoe or dynamic?

  • November 29, 2025
  • 8 reacties
  • 62 keer bekeken
S
Deelnemer

I have KPN fibre optic connection how I setup using tplink mesh deco. What will be internet connection type pppoe or dynamic?

Beste antwoord door TDN

​@Soniya Not Advandced by Internet but first click on More, then on Advanced, then IPTV/VLAN, then Mode=Custom, then activate Internet VLAN, then VLAN-ID and VLAN-Priority.



    8 reacties

    bnh
    Superuser
    Forum|alt.badge.img+11
    • bnh
    • Superuser
    • November 29, 2025

    Hi ​@Soniya!

    PPPoE

    VLAN 6

    Login name: internet

    Password: internet

    Nokia XGS-PON ONT - UCG Fiber, U7 Pro XGS, U6 Pro - SuperFiber 4 Gbit/s - NLZIET AppleTV App
    Jasper van KPN
    S
    Deelnemer
    • Soniya
    • Auteur
    • Deelnemer
    • November 30, 2025

    Even after entering username and password as internet it is still the same does not connect. Previously we were using default kpn box so does kpn need to register new Mac address of deco?

    bnh
    Superuser
    Forum|alt.badge.img+11
    • bnh
    • Superuser
    • November 30, 2025

    Are you connected through the ONT or directly to the fiber?

    Nokia XGS-PON ONT - UCG Fiber, U7 Pro XGS, U6 Pro - SuperFiber 4 Gbit/s - NLZIET AppleTV App
    S
    Deelnemer
    • Soniya
    • Auteur
    • Deelnemer
    • November 30, 2025

    Hi ​@bnh



    Thank you for your reply.

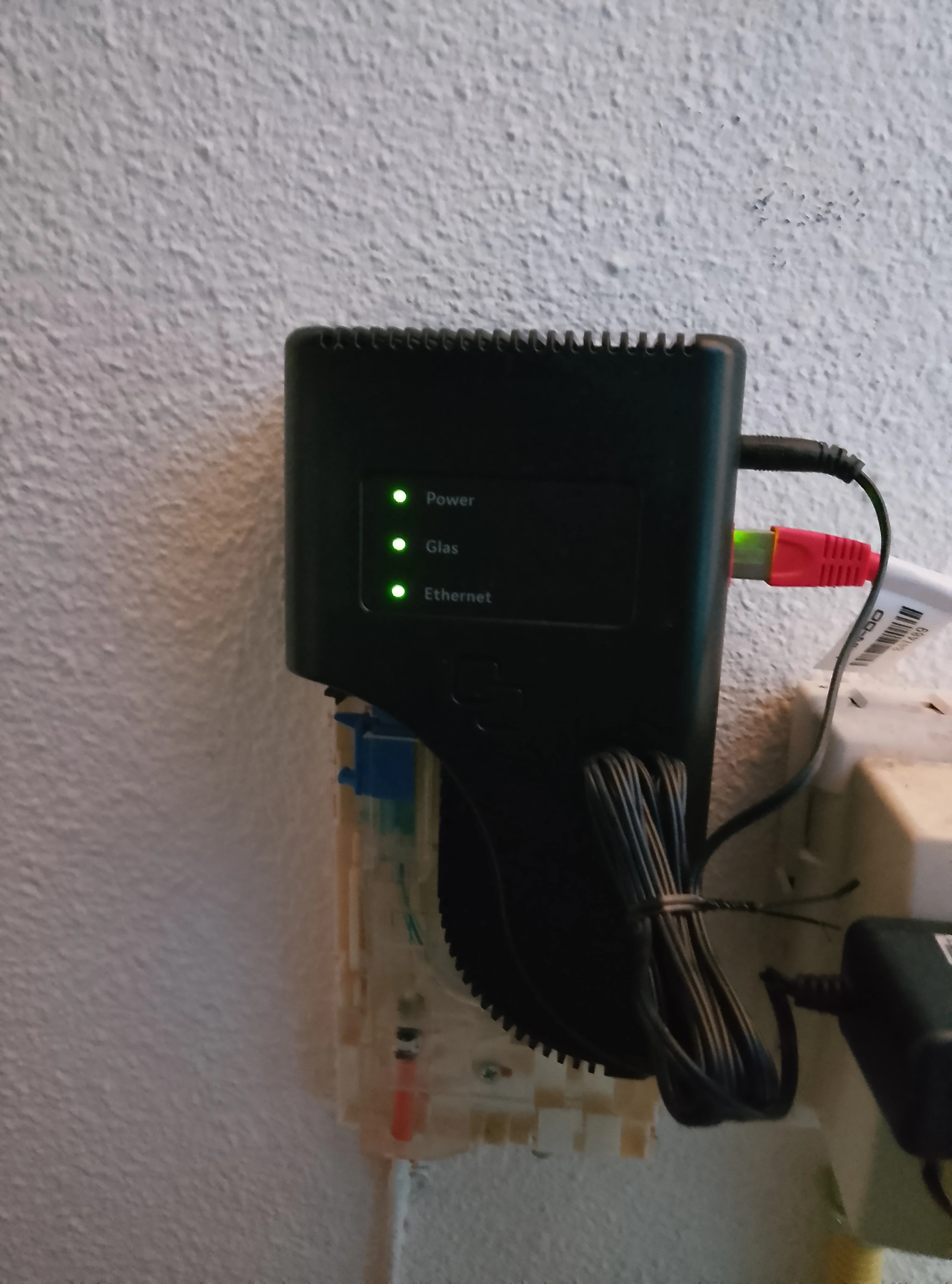

    It beleive it is directly to fiber. I have attached screenshot for your reference





    bnh
    Superuser
    Forum|alt.badge.img+11
    • bnh
    • Superuser
    • November 30, 2025

    Hi ​@bnh

    Thank you for your reply.

    Sure, happy to help!
    This is your ONT, so you don’t need separate registration for your router, which is great. Could you post a screenshot of your router’s internet settings?

    Nokia XGS-PON ONT - UCG Fiber, U7 Pro XGS, U6 Pro - SuperFiber 4 Gbit/s - NLZIET AppleTV App
    Jasper van KPN
    TDN
    Wijsgeer
    Forum|alt.badge.img+12
    • TDN
    • Wijsgeer
    • November 30, 2025

    Even after entering username and password as internet it is still the same does not connect.

    You need to use VLAN-ID=6 on WAN to get working internet

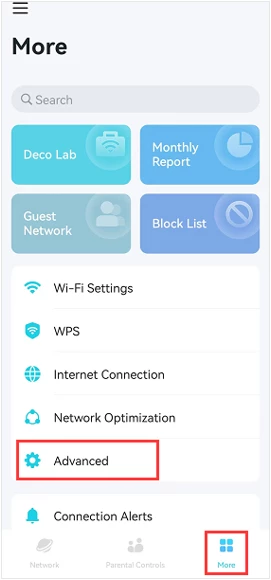

    More → Advanced → IPTV/VLAN



    When you can’t sleep at night, it’s because you’re awake in someone else’s dreams
    Jasper van KPN
    S
    Deelnemer
    • Soniya
    • Auteur
    • Deelnemer
    • November 30, 2025

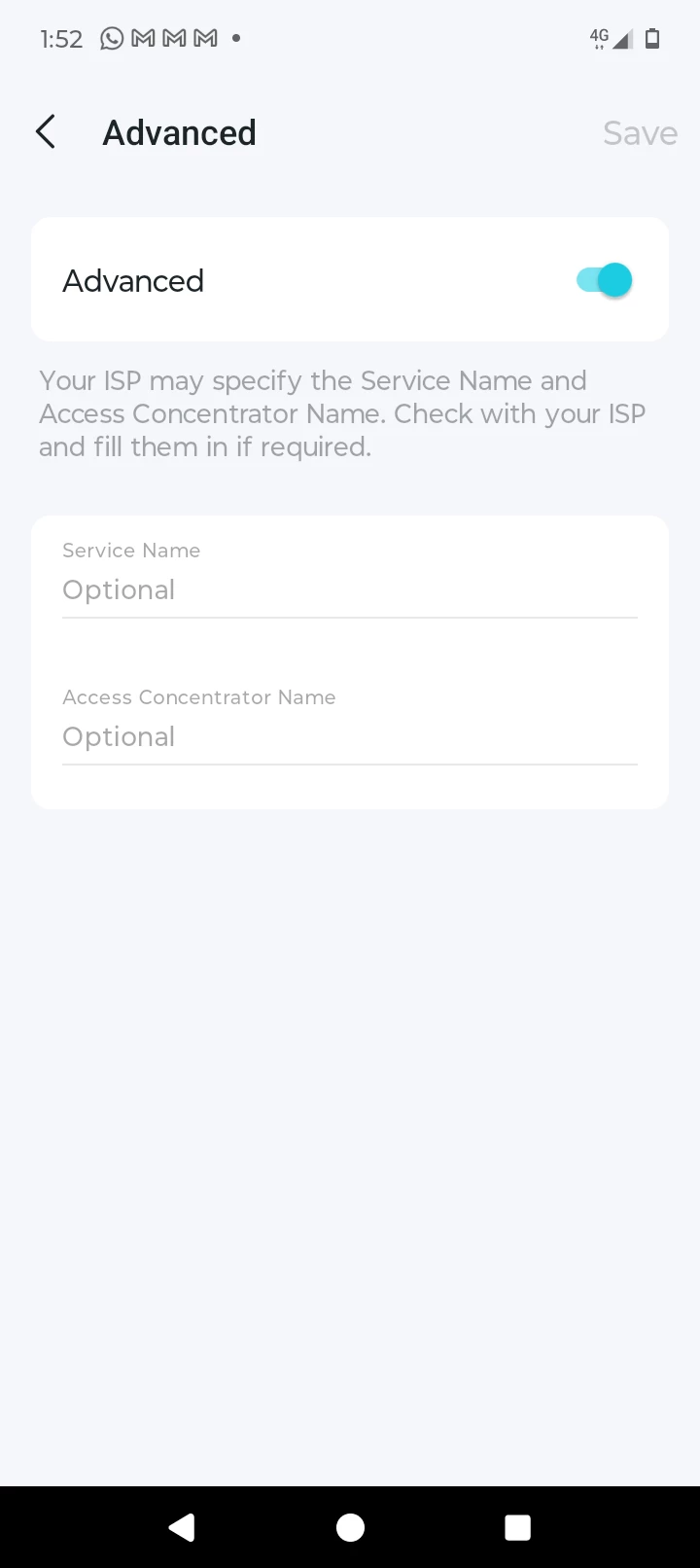

    I am not able to find blanket mode please find attached screenshot



    TDN
    Wijsgeer
    Forum|alt.badge.img+12
    • TDN
    • Wijsgeer
    • Antwoord
    • November 30, 2025

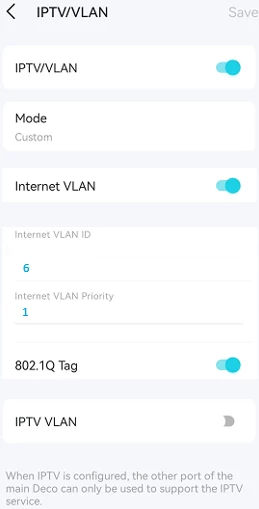

    ​@Soniya Not Advandced by Internet but first click on More, then on Advanced, then IPTV/VLAN, then Mode=Custom, then activate Internet VLAN, then VLAN-ID and VLAN-Priority.



    When you can’t sleep at night, it’s because you’re awake in someone else’s dreams
    Jasper van KPN
    S
    Deelnemer
    • Soniya
    • Auteur
    • Deelnemer
    • November 30, 2025

    I would like to thank you for your help. It did work.
